Dimensions |
|||
|---|---|---|---|
| Length | 1540 mm | ||
| Width | 230 mm | ||
| Thickness | 7 mm | ||
| Wear layer | 0.5 mm | ||
| Number of grooves | 4 grooves | ||
| m²/pack | 1.771 | ||
| Planks/pack | 5 | ||
Product Information |
|||
| Installation method | Click System Easy to DIY | ||
| Click system | Tight Lock Click System | ||
| Number of grooves | 4 grooves | ||
| Type of grooves | micro bevel | ||
| Usage class | Class 33 | ||
| Warranty | 25 years warranty | ||
| Gloss level | Matt | ||

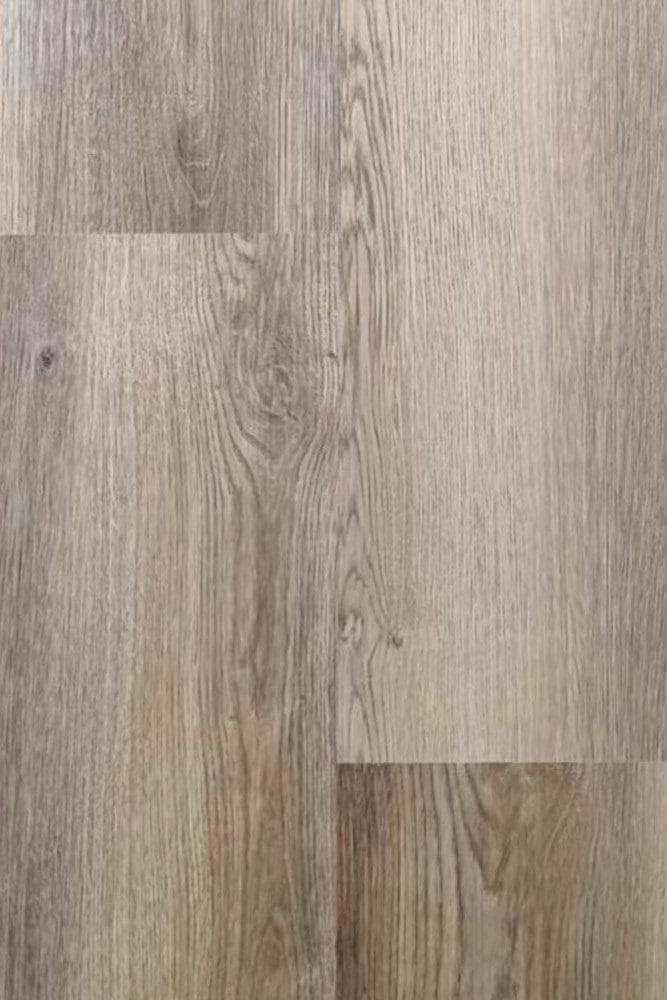

| Color | Spotted Gum | ||
| Wood species | Spotted Gum | ||
Size: 1540*230*7mm (0.5mm Coating +5mm Body Formula +1.5mm Underlay)
Surface: BP Surface UV coating
Underlay: 1.5mm IXPE – Non-smelling antibacterial
Profile: Välinge 2G system, 4 sides clicks
Units per Box: 5 planks
SQM: 1.771 sqm/Box
100% virgin PVC limestone contained materials
Lifetime Structural Warranty (Residential 25 Years, Light Commercial 6 Years)
Technical
Total Thickness: ISO24337:2006, 7mm
Wear Class: EN13329, 20Mil
Fire Classification: DIN 4102-1:1998-05, B1
Impact Resistance Big Ball: EN13329, Impact height: ≥800mm(class31), No visible damage
Staining Resistance: EN438-2:2016, Groups1,2, Grade5, Rating5: No change; Groups3, Grade3, Rating3: Moderate change
Scratch Resistance: ISO 1518-1:2011（E）, 2700g
Light Fastness: ISO 105B02 2014, Blue Wool, ﹥Grade 6
Burning Cigarette: ≤5s, No visible damage
Dimensional Variation: ISO24337:2006, ∆l: 0.0mm, ∆wavg: 0.00mm wmax-wmin:
0.10mm, ∆tavg: 0.05mm tmax-tmin: 0.25mm
Emission of Formaldehyde: EN717-1, ≤0.003mg/m³
Slip Resistance: DIN 51330:2014-02m, R10
Resistance to Heat: ASTM F1514-03 （2013） Average ΔE*ab: 0.26
Underfloor Heating: ≤35℃
